INDUSTRIAL PACKAGING SOLUTION
Auto-Filling Lines: Line-Fit Tooling & Automation-Ready Consumables
We supply cups, trays, lids, and roll films precision-engineered for rotary and linear packaging machinery. Zero jams, reliable sealing, and predictable line speeds.

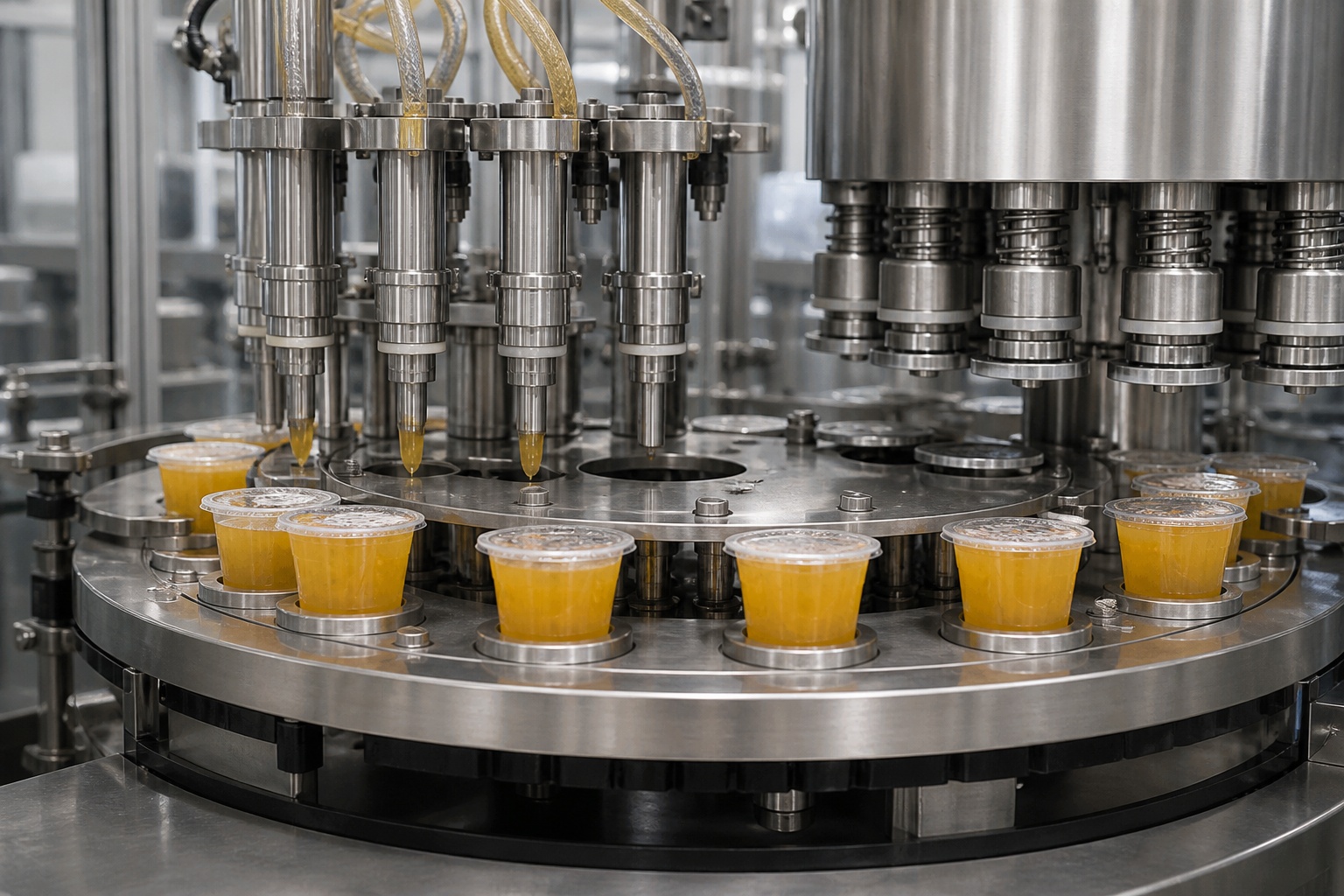

High-Speed Rotary Cup Filling Lines
Consumables engineered to match circular turntable pucks, vacuum denesters, and rotary heat-seal cutting heads.

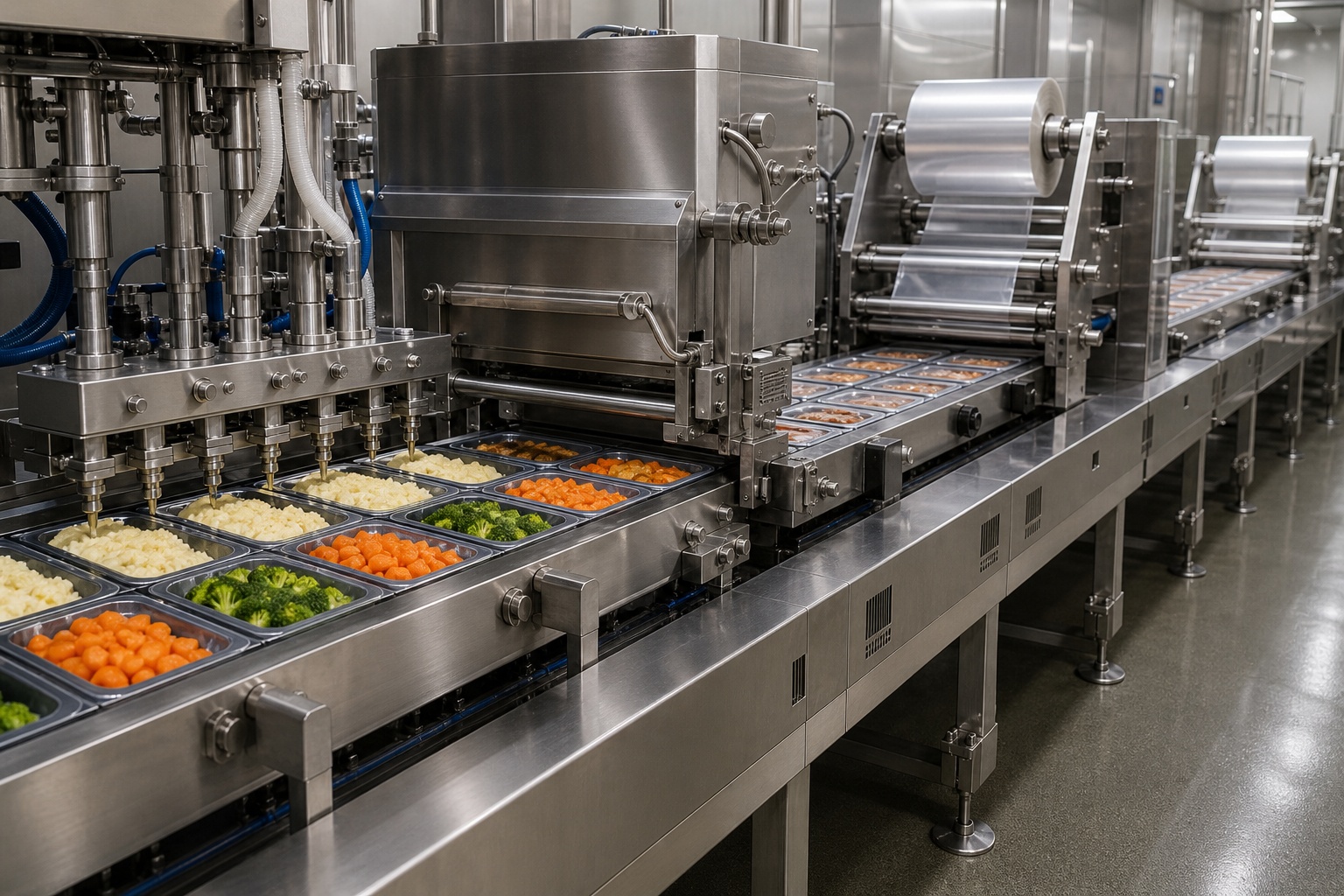

Inline Linear Multi-Lane Tray Sealers
Rigid trays and continuous barrier roll film calibrated for linear indexers, vacuum gas-flush boxes, and trim knives.

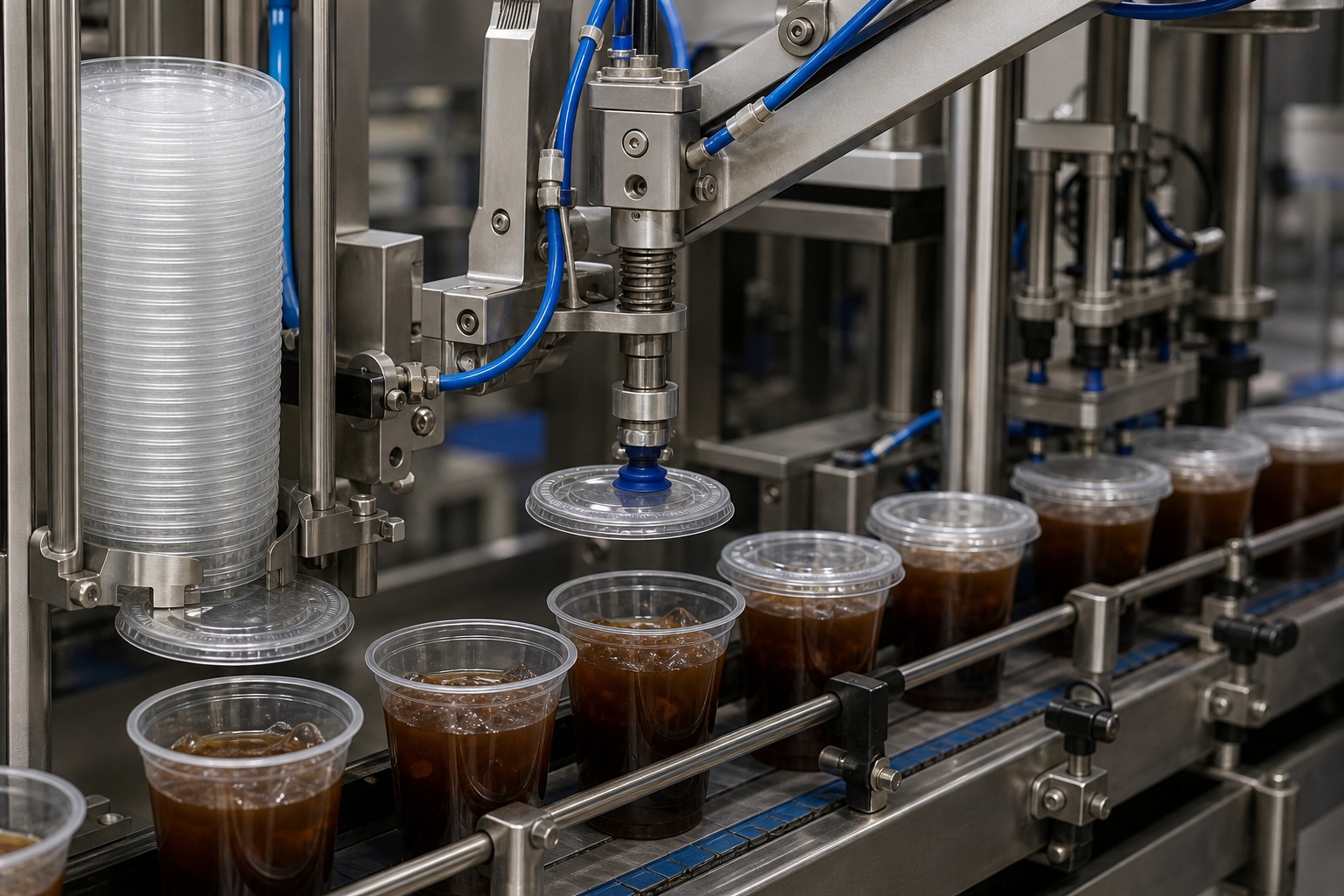

Automated Vacuum Pick & Place Capping
Uniform lid nesting height and anti-static surfaces allowing vacuum suction cups to separate and snap lids at 100+ BPM.

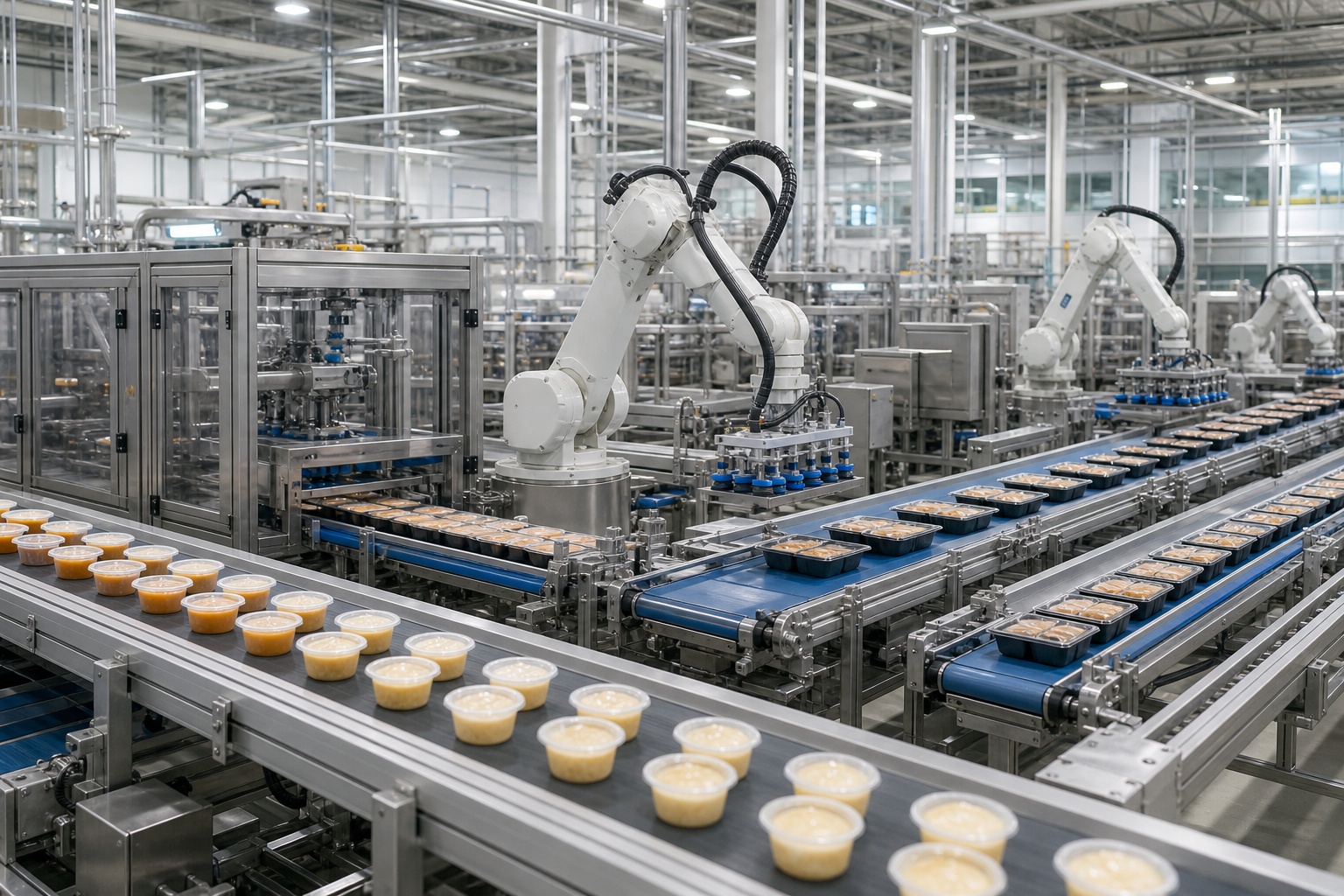

Contract Food & Beverage Co-Packers
Multi-format tooling compatibility and tight dimensional tolerances to minimize line downtime across diverse client runs.
Critical Challenges We Solve
High-speed packaging lines fail when consumables are treated as simple commodities. Here is how our engineering eliminates downtime:
Line Jams from Loose Dimensional Tolerances
Flange and rim variations as small as ±0.3mm cause cup drops to fail, jamming vertical magazine feeders and stopping the line.
Inconsistent Sealing Across Cavities
Thickness variations across tray rims result in uneven heat distribution, creating micro-leaks in multi-cavity sealing heads.
Static Cling in Stacking & Denesting
High static electricity causes cups or lids to stick together in stacks, dropping multiple units at once into conveyor pucks.
Core System Components
Precision-matched packaging components manufactured and quality-inspected to fit your specific production line.
Auto-Line Calibrated Cups & Trays
Enforced ±0.15mm Rim Tolerances | De-nesting Shoulder Geometry | Anti-Static Treated Resins
Continuous Roll Sealing Films
Optical Eye-Mark Registration | Precise Heat Window Formulations | High Shear Strength
Precision Automation-Fit Lids
Consistent Stacking Height | Clean Die-Cut Edges | Vacuum Pick-and-Place Compatible
Verified for Factory Lines, Not Just Showcases
We supply custom packaging by participating directly in engineering verification, dimensional tolerance validation, and 100% in-line quality assurance.
In-Line Quality Assurance Protocols:
Strict ±0.15mm critical tooling tolerance ensuring 99.9% jam-free automatic dispenser cycle rate
Formulated with anti-static agents and low-friction additives for clean single-unit separation
Food-contact compliance: FDA 21 CFR, EU 10/2011, PFAS-Free & GB 4806.7 verified
Line-Fit is Part of the Engineering Specification
On an automated line, the package has to match the equipment before it matches the drawing. Four critical parameters get settled first:
Equipment Constraints
- Sealing & Capping WindowThe temperature, pressure and dwell time your machine needs for a reliable seal. That window belongs to the equipment and the film together, not to the film alone.
- Releasing One Pack at a TimeCups and trays ship nested. At line speed the machine has to pull them apart singly — rim shape, wall taper and ribbing decide whether that works or jams the line.
Process & Distribution
- Stacking Strength Under Cold LoadWall structure and resin toughness assessed at your real storage temperature. Ambient test results do not predict frozen performance.
- Fill Temperature ToleranceHot filling and blast freezing deform the wrong polymer. The material is chosen against the temperature the pack actually sees.
What are you running?
Line-fit starts with the machine, not the product. Pick the line closest to yours and see the matching consumables.
